مكبس ختم المعادن Müller HUQ 630.30

This Müller HUQ 630.30 was manufactured in 2001. A robust mechanical stamping press with a nominal force of 6300 kN and a stroke rate of 15–60 strokes/min. It features a slide adjustment of 200 mm and can handle coil widths from 60 to 600 mm. Ideal for steel and aluminium, it supports a maximum coil weight of 6 tons. Consider the opportunity to buy this Müller HUQ 630.30 mechanical stamping press. Contact us for more information.
Additional Equipment

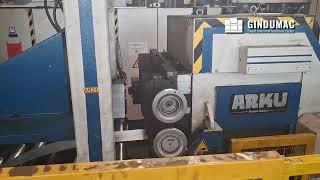

Coil Feeding
Material: Steel / Aluminium
Coil feed height: 380 mm (from bolster)
Coil width (crosswise): 60–600 mm
Coil thickness: 0.6–4.0 mm
Coil outer diameter: max. 1800 mm
Coil inner diameter: 508 mm
Coil weight: max. 6 t
Coil length (in flow direction): 0–9999 mm
Extra information
Main Drive
Type: Eccentric press
Stroke Rate: 15–60 strokes/min
Stroke Length: 57–300 mm
Workpiece
Nominal Force: 6300 kN
Slide Adjustment: 200 mm
Shut height: 680 mm
Tools
Die clamping (lower): Hydraulic
Die clamping (upper): Manual hydraulic (Quick clamp upper die 60 ± 0.5)
Side distance between columns: 3000 mm
Machine-Specific Data
Scrap outlet through bolster: Steel and aluminium (max. 290 mm diagonal)
application type: Stamping
Location: Poland
machine type: Mechanical Stamping Press
Machine Depth: 3000 mm
