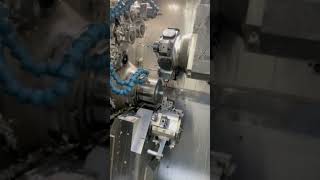

Horizontal turning machine manufactured in 2000. This Index ABC features a maximum spindle speed of 5000 1/min and a bar capacity of 60 mm. It includes an 8-station revolver with driven tools capable of 6000 1/min. If you are looking to get high-quality turning capabilities, consider the Index ABC machine we have for sale. Contact us for further details.
Location: DE
Counter Spindle: yes
Driven Tools: yes
Main Spindle Torque (100/40% ED): 95/140 Nm
Bar Capacity: Max. 60 mm
Revolver 1: 8 stations (7 for VDI 25 tools, 1 for synchronous spindle)
Revolver 1 Driven Tools: Max. speed 6000 1/min, power 3.3 kW
Revolver 2: 6 stations, X-travel 81 mm, Z-travel 80 mm
Synchronous Spindle: Max. speed 4500 1/min, torque 10 Nm
Coolant Tank Capacity: 220 liters
Power Supply: 400 V, 50 Hz
Cabinet Dimensions: 1300 mm width x 2000 mm height
Display: 24 cm color flat screen interface
Control Version: C200-4
Loading Magazine: INDEX MBL 65/3700
MBL Bar Length Capacity: 3000 mm (D 5–10) / 3600 mm (D 10–65)
Chip Conveyor: Knoll chip conveyor with 840 mm discharge height
Additional equipment
