مركز الميكنة متعددة الوظائف TBI MVC 1890

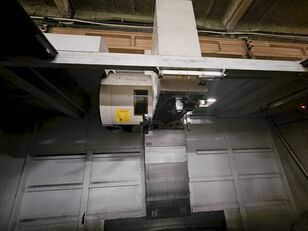

This 3-axis TBI MVC 1890 was manufactured in 2013. It features a robust cast iron body, cross-slide table design, and slideway guides on all axes for enhanced rigidity and precision. Key specs include a Heidenhain CNC control, SK40 spindle taper, and a maximum spindle speed of 12000 rpm. It also boasts a 24-position automatic tool changer and integrated chip conveyor. Consider the opportunity to buy this TBI MVC 1890 vertical machining centre. Contact us for more information.
Additional equipment
Under-Table Chip Flushing System
Integrated Chip Conveyor
Machine Benefits
Technical Machine Benefits
Voltage: 400 v
Power requirement: 45 kva
Rigid tapping without compensating chuck
Electronic handwheel for manual control
Data transmission: usb and fast ethernet
Through-spindle coolant: 20 bar
Spindle air blast, air and liquid cooling
24-position automatic tool changer
Manual coolant wash guns
Extra Information
Heavy-duty cast iron body with cross-slide table design for maximum rigidity
Slideway guides on all axes with four slideways on Y-axis for extra stiffness
Spindle thermal stabilization, Z-axis counterbalance, and centralized lubrication system for high precision and long-term accuracy
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN
Control Brand: HEIDENHAIN
Taper Size: SK 40
Marke: TBI
