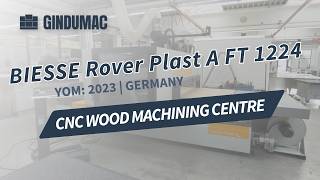

مركز الميكنة متعددة الوظائف Biesse ROVER PLAST A FT 1224

This 5-axis BIESSE ROVER PLAST A FT 1224 was manufactured in 2023. It features a working area of 2465 mm x 1260 mm and a Z-axis stroke of 378 mm. The machine is equipped with a powerful 13 kW machining unit capable of up to 20,000 RPM. If you are looking to get high-quality CNC wood machining capabilities, consider the BIESSE ROVER PLAST A FT 1224 machine we have for sale. Contact us for further details.
Location: DE
Working Area / Table Dimensions: X = 2465 mm, Y = 1260 mm
Z-Axis Stroke: 378 mm
Maximum Axis Speed: X = 85 m/min, Y = 60 m/min, Z = 20 m/min
Maximum Piece Passage in Z: 200 mm (170 mm with Sweeper Arm)
Worktable Type: FT PLUS phenolic layer table with 30 mm grid layout, 12 mm MDF matrix plate
Vacuum System: Multi-zone vacuum system (4 independent zones)
Vacuum Pump: 1x 250 m³/h cam vacuum pump (dry running, maintenance free)
Machining Unit: 5-interpolating axes machining unit, 13 kW (17.4 HP) S6 / 11 kW S1, HSK F63 adapter, liquid-cooled, up to 20,000 RPM
Axis Angles: C-axis 360° continuous rotation, B-axis +/- 150°
Coolant Unit: Liquid cooling system (absorbs 1600 W) for electrospindle
Measuring Systems: Digital tool length presetter (for diameters up to 130 mm)
Software: BH660 PC-based control with WRT (Windows Real Time), bSolid (3D CAD/CAM), bSolid 3-Axis & 5-Axis machining modules, bNest (Nesting module), bSolid File Import Module
Vacuum modules: 6x (132x146 H74mm), 4x (132x75 H74mm), 4x (132x54 H74mm)
Power Supply: 400 V / 50 Hz, 3-phase (without neutral conductor), voltage tolerance +/-10%
Safety Standard: CE / UKCA with Full Bumper safety system and protective enclosure
Tool Tool Changer / Magazines
13/16-position linear side tool changer mounted on machine bed
8-position revolving tool changer mounted on X-carriage
Additional Features
LED light strip for work area illumination & L-shaped LED projector for vacuum pod positioning
Ionizer for static charge reduction on plastics
Tool lubrication system (air-oil mist) for non-ferrous material processing
Wired remote control pad
Uniclamp adapters (4x) and Uniclamp clamping devices (4x
H=74mm)
Air cushion blower for easy loading/unloading
Barcode scanner (1D wireless)
UPS backup for machine PC (7-10 min power backup)
